Plain-English definitions for the terms on our product pages.

MERV

MERV stands for Minimum Efficiency Reporting Value, a rating system by ASHRAE to measure how effectively air filters remove particles. The scale ranges from 1 to 20, with higher ratings indicating better filtration.

Paint overspray

Paint droplets that land outside the intended area during spraying. Exhaust-side filters are sized and rated to hold that overspray before it reaches the stack.

Pocket / cube filter

A multi-pocket exhaust filter. Pocket count and depth determine the surface area and the dust-holding capacity: a 3-pocket cube holds more overspray than a single-pocket cube of the same face size.

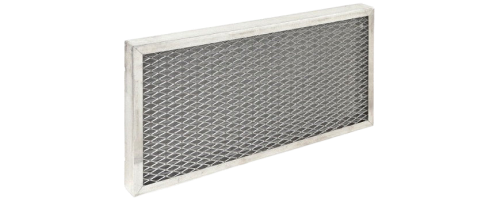

Holding frame

A steel welded-wire frame that carries a cut-to-size media pad in place of a pre-manufactured filter. One frame is bought once; only the pad is replaced at changeout.

Pressure drop

The resistance a filter adds to airflow, measured in inches of water column. It rises as the filter loads with particles. That is why a lower initial resistance means less strain on the fan and less energy used over the filter’s life.

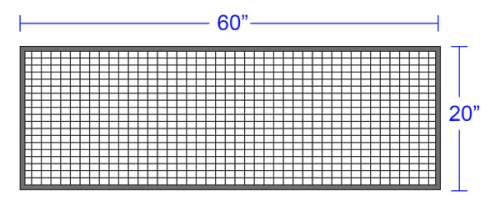

¼-inch grid

Every custom cut we make is snapped to the nearest quarter inch. Enter the size you measured, fractions included, and the price you see is the price for that snapped size.
