Key Features

• Constructed with durable dual-density polyester fiber.

• Cube configuration promotes even airflow and reduces airflow resistance.

• Deep pockets maximize paint-holding capacity.

• Simple installation, low maintenance, and environmentally friendly design.

Polyester cube filters, popular in automotive, aerospace, and industrial painting applications, are a cost-effective solution for capturing overspray while maintaining a clean and efficient work environment.

Product Specifications

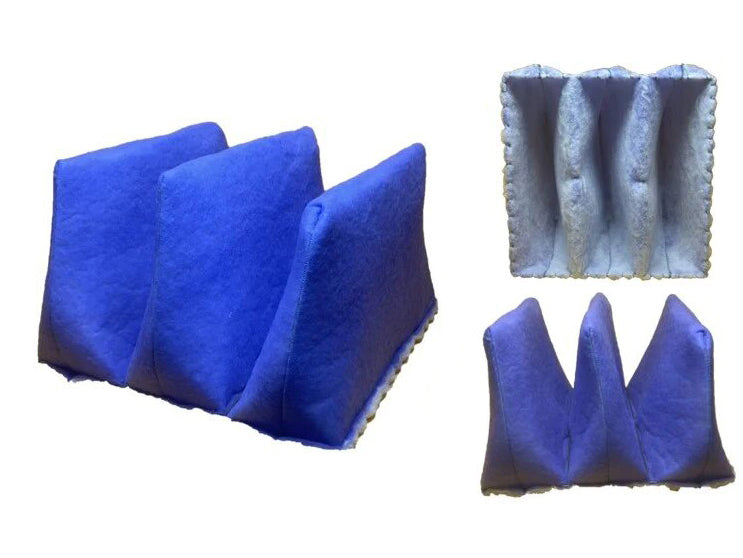

Product Type: Pocket Cube Filter

Construction Material

This filter is constructed from dual-density polyester media, featuring a dry tackifier to enhance filtration efficiency. It also includes a heavy-gauge metal frame for added durability and structural support.

Features

The filter is designed with three deep pockets, which ensure even airflow and full inflation, thereby minimizing resistance and maximizing paint holding capacity. The multiple pocket configuration provides a low initial resistance, making it efficient in capturing overspray particles. The first layer of the filter is coarse, followed by a denser needle-punched layer that traps finer particles effectively.

Size Options

Available in several size variations, typically around 20" x 20", with the depth adjusted based on specific needs.

Color

The filter comes in a combination of purple and white.

Efficiency Rating

It is rated MERV 9, making it suitable for filtering a significant portion of airborne particles.

Applications

This filter is primarily used in multi-stage spray booths and is ideal for automotive, aerospace, and industrial painting applications where efficient overspray capture is critical.

Replacement Period

The filters should be replaced depending on the volume and type of paint used.
